Schraubkabelschuhe

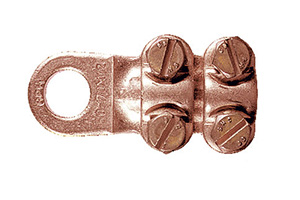

Klemmkabelschuhe
gestanzt
Ausführung mit 4 Bronzeschrauben
Werkstoff: E-Cu
Oberfläche: galvanisch verzinnt
Schrauben: DIN 84 / DIN 933 Bronze, F 60

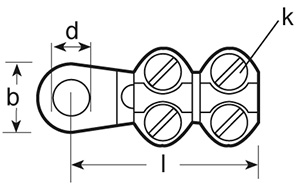

| Nenn- querschnitt | Nenngröße | Artikel- nummer | Abmessungen in mm | Gewicht 100 Stück | Verp.- Einheit | Preis/ 100 St. | |||
|---|---|---|---|---|---|---|---|---|---|
| qmm | l | d | b | k | ~ kg | Stück | Euro | ||
| 25,0 - 35,0 | 8 | 701635 | 38,5 | 8,5 | 18,5 | M 5 | 4,300 | 100 | 644,70 |
| 12 | 701637 | 42,0 | 13,0 | 21,5 | M 5 | 4,500 | 100 | 745,80 | |
| 35,0 - 50,0 | 10 | 701638 | 46,0 | 10,5 | 19,0 | M 6 | 6,750 | 100 | 817,65 |
| 50,0 - 70,0 | 10 | 701640 | 51,0 | 10,5 | 23,5 | M 6 | 9,350 | 100 | 1437,60 |
| 12 | 701641 | 51,0 | 13,0 | 23,5 | M 6 | 9,300 | 100 | 1483,50 | |
| 70,0 - 95,0 | 10 | 701642 | 57,0 | 10,5 | 24,0 | M 6 | 12,000 | 100 | 1765,50 |
| 12 | 701643 | 57,0 | 13,0 | 24,0 | M 6 | 11,850 | 100 | 1780,50 | |
| 95,0 - 150,0 | 10 | 701644 | 61,0 | 10,5 | 30,0 | M 8 | 20,150 | 50 | 2308,50 |
| 12 | 701645 | 61,0 | 13,0 | 30,0 | M 8 | 20,200 | 50 | 2308,50 | |
| 150,0 - 240,0 | 10 | 701652 | 68,5 | 10,5 | 34,0 | M 8 | 24,400 | 50 | 3114,00 |
| 12 | 701653 | 68,5 | 13,0 | 34,0 | M 8 | 24,350 | 50 | 3114,00 | |
| 16 | 701654 | 68,5 | 17,0 | 34,0 | M 8 | 24,300 | 50 | 3114,00 | |
| 185,0 - 300,0 | 20 | 701658 | 68,5 | 21,0 | 35,0 | M 8 | 27,950 | 25 | 3936,00 |
